Scientific documents with troff eqn

Many technical writers may think of TeX or LaTeX for scientific writing that requires equations. But the Unix troff system supported equations long before Knuth created TeX in 1978, and before Lamport wrote the LaTeX macros in 1984.

Lorinda Cherry and Brian Kernighan (both from AT&T Labs) wrote a 1975 article in the Communications of the ACM about a pre-processor for troff called eqn, describing it as a system for typesetting mathematics. The eqn pre-processor used natural language which made it easy to use, even for very complicated equations.

Let's look at an example document I wrote that demonstrates how to format equations with eqn, using the GNU groff implementation. You can install GNU groff on any modern computer system, including Mac and Windows, although it is most frequently associated with Unix-like systems such as Linux.

A sample document

I recently worked on a hobby project that required drawing an equilateral triangle in a 640×480 display. The triangle needed to be centered on the display, which meant the top of the triangle was easily positioned at the top-center of the screen. But what should be the coordinates for the other two corners?

I started by writing a document in GNU groff, and drawing a diagram with pic. I formatted my document with the ms macros, just as authors might do at AT&T Labs in the 1970s and 1980s:

.ds FAM N
.nr PS 14
.TL
Drawing an equilateral triangle
.LP
Start with this representation of an equilateral triangle in a 640\[mu]480
display. (That's a 4:3 aspect ratio.) The triangle in the diagram doesn't
need to be exactly to scale, it can be approximate.
.PS
box dotted wid 4 ht 3;
line "c " rjust from last box.n down 3 left 1.5;
line "a" below right 1.5;
line "a" below right 1.5;
line " c" ljust up 3 left 1.5;
line "b " rjust dashed down 3;
.PE

With pic, I created a line diagram that is properly labeled and easy to read:

$ pdfroff -ms -p triangle.ms > triangle.pdf

Adding equations with eqn

The ACM article (Lorinda Cherry and Brian Kernighan) describes the general features of eqn and includes many example equations, but doesn't provide much of a starting point. So let's start with the basics:

The eqn pre-processor will format any instructions between .EQ (equation start) and .EN (equation end) in a document. Let's start by adding a simple equation to the document:

.PP
Let's start with the theorem for a right triangle:
.EQ
a sup 2 + b sup 2 = c sup 2
.EN

This formats the equation $a^2 + b^2 = c^2$ which is centered on a line by itself. The eqn instructions are meant to be human-readable; Kernighan explained in his 2020 book Unix: A History and a Memoir that he and Cherry modeled the language on how he read technical books aloud so they could be recorded onto audio tapes for blind readers. (p 103) Thus, a sup 2 means a superscript 2 and produces $a^2$, and a sub 2 means a subscript 2 and generates $a_2$.

We can format inline equations if we provide eqn with a set of delimiters. Technical writers who use LaTeX will probably find $ most familiar, so let's use that. You must provide eqn with the start and end delimiters; using $ for both means listing it twice.

After adding one more equation, the full document now looks like this:

.ds FAM N
.nr PS 14
.TL
Drawing an equilateral triangle
.LP
Start with this representation of an equilateral triangle in a 640\[mu]480
display. (That's a 4:3 aspect ratio.) The triangle in the diagram doesn't
need to be exactly to scale, it can be approximate.
.PS
box dotted wid 4 ht 3;
line "c " rjust from last box.n down 3 left 1.5;
line "a" below right 1.5;
line "a" below right 1.5;
line " c" ljust up 3 left 1.5;
line "b " rjust dashed down 3;
.PE
.PP
Let's start with the theorem for a right triangle:
.EQ
delim $$
a sup 2 + b sup 2 = c sup 2
.EN
.PP
We also know that $c = 2 a$ for an equilateral triangle, and that
$b = 480$ for 640\[mu]480 graphics. This allows us to make these
substitutions to reduce the equation to a single variable:
.EQ
a sup 2 + 480 sup 2 = (2 a) sup 2
.EN

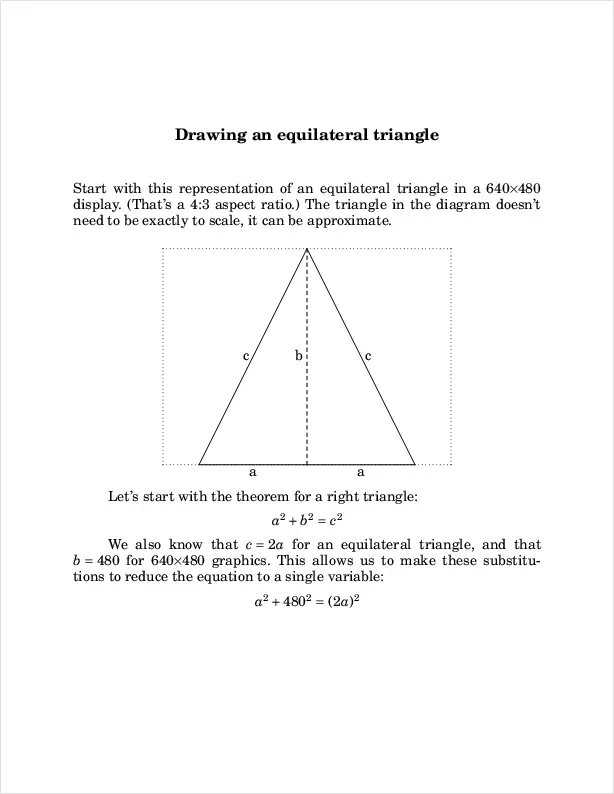

While these inline equations do not require special formatting, and could have been produced using simple italic type, using eqn provides consistent display for inline mathematics.

On original Unix systems in the 1970s and 1980s, authors would process a document like this via the command line. The pre-processors are used separately, the eqn pre-processor for mathematics and pic for diagrams, "piping" the output to troff for final formatting. The output would be redirected to a file so it could be printed later on a typesetter:

$ eqn triangle.ms | pic | troff -ms > output

However, the modern GNU groff system instead uses the pdfroff command to generate a PDF document; this command can also use the same -ms option to use the ms macros. Add the -e option to use the eqn pre-processor, and -p to use pic:

$ pdfroff -ms -e -p triangle.ms > triangle.pdf

Stacking related equations

When describing a series of equations, you may find it useful to align two or more equations, such as "stacking" the equations so the equals sign remains in the same place. In LaTeX, you might use an eqnarray, but eqn provides a simpler method: use the mark keyword to indicate the symbol that should be used to align the equations, and the lineup keyword to line up following equations to the marked symbol.

Let's look at a practical example. We might further simplify the last equation to expand $(2 a)^2$ as $4 a^2$. We can line up two equations to the equals sign with mark and lineup:

.EQ
a sup 2 + 480 sup 2 mark = (2 a) sup 2
.EN
.EQ
a sup 2 + 480 sup 2 lineup = 4 a sup 2
.EN

The mark remains in place until it is reset with another mark statement. For example, we could continue to resolve the equations through simplification, using mark and lineup to align paired equations:

.PP
Solving for $a sup 2$, we can further simplify the expression as:
.EQ
4 a sup 2 - a sup 2 mark = 480 sup 2
.EN
.EQ
3 a sup 2 lineup = 480 sup 2
.EN
.PP
This resolves the final calculation for $a$:
.EQ
a sup 2 mark = { 480 sup 2 } over 3
.EN
.EQ
a lineup = sqrt { { 480 sup 2 } over 3 }
.EN

The last two equations show other formatting: use the over keyword for long-form division, and the sqrt keyword for square roots. Use the { } brackets to group statements together, such as to put $480^2$ on top of the division. This formats the first equation as: $$a^2 = \frac{480^2}{3}$$

Let's bring the full document together one more time for final formatting:

.ds FAM N
.nr PS 14
.TL
Drawing an equilateral triangle
.LP
Start with this representation of an equilateral triangle in a 640\[mu]480
display. (That's a 4:3 aspect ratio.) The triangle in the diagram doesn't
need to be exactly to scale, it can be approximate.
.PS
box dotted wid 4 ht 3;
line "c " rjust from last box.n down 3 left 1.5;
line "a" below right 1.5;
line "a" below right 1.5;
line " c" ljust up 3 left 1.5;
line "b " rjust dashed down 3;
.PE
.PP
Let's start with the theorem for a right triangle:
.EQ
delim $$
a sup 2 + b sup 2 = c sup 2
.EN
.PP
We also know that $c = 2 a$ for an equilateral triangle, and that
$b = 480$ for 640\[mu]480 graphics. This allows us to make these
substitutions to reduce the equation to a single variable:
.EQ
a sup 2 + 480 sup 2 mark = (2 a) sup 2
.EN
.EQ
a sup 2 + 480 sup 2 lineup = 4 a sup 2
.EN
.PP
Solving for $a sup 2$, we can further simplify the expression as:
.EQ
4 a sup 2 - a sup 2 mark = 480 sup 2
.EN
.EQ
3 a sup 2 lineup = 480 sup 2
.EN
.PP
This resolves the final calculation for $a$:
.EQ
a sup 2 mark = { 480 sup 2 } over 3
.EN
.EQ
a lineup = sqrt { { 480 sup 2 } over 3 }
.EN
.EQ
a lineup approx 277
.EN
.PP
Thus, the coordinates for the triangle are:
.IP \[bu]
.B
320,0
.IP \[bu]
$320 - 277$,479 =
.B
32,479
.IP \[bu]
$320 + 277$,479 =
.B
597,479

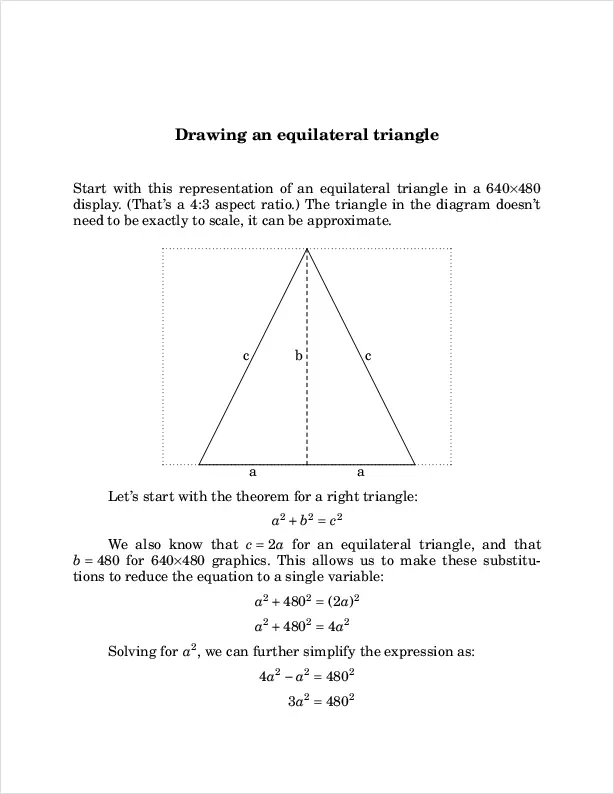

The result is a set of equations that are properly aligned and easy to read:

$ pdfroff -ms -e -p triangle.ms > triangle.pdf

Equations made easy

I like using eqn for equations in scientific writing. Some may prefer LaTeX, but I just find eqn works very naturally for me.

To learn more about how to typeset equations in troff documents, start with the classic article A system for typesetting mathematics (1975) by Cherry and Kernighan, which provides an excellent overview for its capabilities. The eqn(1) man page has more information, including a helpful "Examples" section.
